4 Conductor Armored Electrical Cable Downhole Well Logging Cable

Name: 4 Conductor Armored Electrical Cable Downhole Well Logging Cable
Brand: Gold
Price: 1 USD

Quality 4 Conductor Armored Electrical Cable Downhole Well Logging Cable for sale

Brand Name : Gold

Model Number : GD

Place of Origin : Chongqing, China

MOQ : 1 set

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1 set per 5 days

Delivery Time : 5-8 working days

Packaging Details : Carton

Product Name : Geophysical Well Logging Cable

Copper Construction : 19×0.26 mm

Insulation : 0.35 mm

Protection : 0.32 mm

Cable Diameter : 5.60 mm±0.10 mm

Cable Weight in Air : 145 kg/km

Temp Rating : 232 ℃

Cable Breaking Strength : 25 kN

Contact Now

Armored Cable With 4 Conductor 3/16 Inch Diameter

Armored cables are a critical component of the oil and gas industry, enabling engineers to collect vital data about the subsurface environment and make informed decisions about drilling and production activities.

Armored Well logging cables must be connected to downhole instruments and surface equipment using specialized connectors that can withstand the high stresses and temperatures of the drilling process. The connectors must also be designed to ensure reliable data transmission.

Temperature and Pressure Resistance: Armored cables must be able to withstand high temperatures and pressures encountered in deep wells. They are often coated with materials that can resist corrosion and erosion from harsh downhole environments.

Parameter

Construction
Copper Construction	19×0.26 mm
Insulation F46	0.35 mm
Protection F40	0.32 mm
Armor Inner	12×0.79 mm(916N)
Outer	18×0.79 mm(916N)
Physical
Cable Diameter	5.60 mm±0.10 mm
Cable Weight in Air	145 kg/km
Temp Rating	232 ℃
Mechanical
Cable Breaking Strength	25 kN
Minimum Shave Diameter	320 mm
Cable Stretch Coefficient	2.5 m/km/5kN
Electrical
Voltage Rating	1200 VDC
Insulation Resistance	15000 MΩ·km
Resistance Typical	18.0 Ω/km
Capacitance @ 1 kHz	190 pf/m

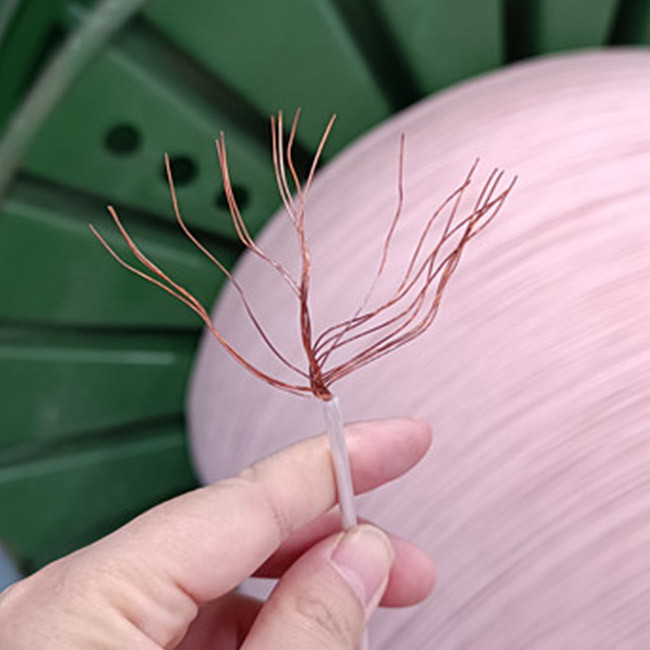

Product Photo
